Introduction to Rotary Torque Transducer Strain Gauges

Introduction

In the world of precision engineering and advanced manufacturing, the accurate measurement of torque is critical. Whether it's ensuring the reliability of automotive components, enhancing the performance of aerospace machinery, or optimizing the efficiency of industrial processes, torque measurement plays a pivotal role. Rotary torque transducers, equipped with Strain Gauges, are at the forefront of this measurement technology. This article provides an in-depth introduction to rotary torque transducer strain gauges, exploring their principles, applications, and significance.

What is a Rotary Torque Transducer?

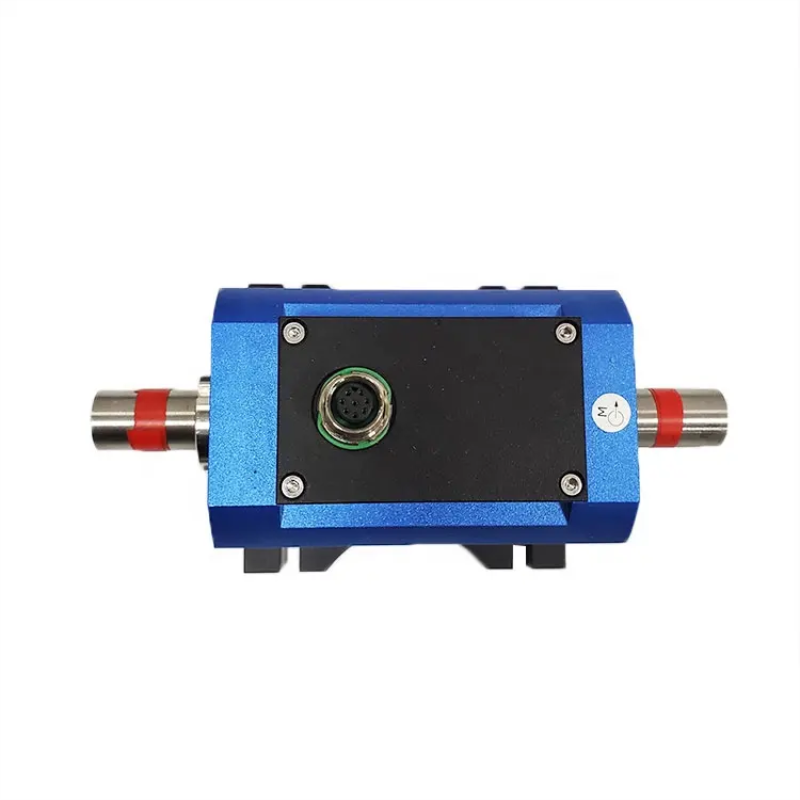

A rotary torque transducer is a device designed to measure the torque (rotational force) applied to a rotating system. It converts the mechanical torsional force into an electrical signal that can be quantified and analyzed. These transducers are essential in applications where precise torque measurements are necessary for monitoring, control, and optimization of rotating machinery.

Understanding Strain Gauges

Strain gauges are sensors used to measure strain (deformation) on an object. When an object is subjected to force, it deforms, and this deformation changes the electrical resistance of the strain gauge. By measuring this change in resistance, the amount of strain—and hence the applied force—can be determined. Strain gauges are typically made from metallic foil patterns attached to a backing material.

Working Principle of Rotary Torque Transducers with Strain Gauges

The core principle behind rotary torque transducers with strain gauges involves the conversion of mechanical deformation into an electrical signal. Here’s how it works:

1. Mounting Strain Gauges: Strain gauges are strategically mounted on the rotating shaft of the torque transducer. They are placed in specific patterns to measure the strain caused by torsional forces.

2. Deformation Detection: As torque is applied to the shaft, it twists slightly, causing deformation. This deformation leads to a change in the strain gauge's electrical resistance.

3. Signal Processing: The change in resistance is converted into an electrical signal, typically a voltage change. This signal is proportional to the amount of torque applied.

4. Data Transmission: In rotary systems, data transmission can be challenging due to the rotating nature of the component. Various methods, including slip rings, wireless telemetry, and inductive coupling, are used to transmit the electrical signal from the rotating shaft to a stationary data acquisition system.

5. Data Analysis: The transmitted signal is processed and analyzed to provide accurate torque measurements, which can be displayed in real-time or recorded for further analysis.

Applications of Rotary Torque Transducer Strain Gauges

1. Automotive Industry: Rotary torque transducers are widely used in the automotive sector to test engines, gearboxes, and drive shafts. They help in ensuring the efficiency and durability of automotive components by providing precise torque measurements during testing and development phases.

2. Aerospace: In the aerospace industry, these transducers are essential for monitoring the performance of aircraft engines and other critical rotating components. Accurate torque measurement is crucial for maintaining the safety and reliability of aircraft systems.

3. Manufacturing and Production: Rotary torque transducers are used in various manufacturing processes to monitor and control torque during assembly and machining operations. This helps in maintaining product quality and consistency.

4. Energy Sector: In wind turbines and other renewable energy systems, rotary torque transducers are used to measure the torque generated by the turbines, optimizing performance and efficiency.

5. Robotics and Automation: In robotic systems, precise torque measurement is vital for controlling the movement and force exerted by robotic arms and joints, ensuring accurate and safe operation.

Advantages of Using Rotary Torque Transducers with Strain Gauges

1. High Accuracy and Sensitivity: Strain gauge-based rotary torque transducers offer high accuracy and sensitivity, making them suitable for demanding applications where precise torque measurements are required.

2. Dynamic Measurement Capability: These transducers can measure dynamic (changing) torque, providing real-time data that is crucial for monitoring and controlling rotating systems.

3. Robustness and Durability: Designed for industrial environments, these transducers are robust and durable, capable of withstanding harsh conditions and continuous operation.

4. Versatility: They can be used with a wide range of materials and in various configurations, making them adaptable to different applications and requirements.

Challenges in Using Rotary Torque Transducer Strain Gauges

1. Signal Noise: In some environments, electrical noise can interfere with the signal from the strain gauges, affecting measurement accuracy. Proper shielding and signal processing techniques are necessary to mitigate this issue.

2. Temperature Effects: Changes in temperature can affect the strain gauge resistance, leading to measurement errors. Temperature compensation techniques are often employed to counteract these effects.

3. Data Transmission: Transmitting data from a rotating component to a stationary system can be challenging. Advanced methods such as wireless telemetry are often required to ensure reliable data transmission.

Technological Advances in Rotary Torque Transducer Strain Gauges

Recent advancements in materials science and electronics have led to significant improvements in rotary torque transducer technology. Innovations include:

1. Wireless Data Transmission: The development of wireless telemetry systems has made it easier to transmit data from rotating transducers, eliminating the need for slip rings and reducing wear and tear.

2. Improved Strain Gauge Materials: Advances in strain gauge materials have enhanced their sensitivity and stability, resulting in more accurate and reliable measurements.

3. Smart Transducers: Integration of microprocessors and digital signal processing within the transducers has led to the development of smart torque transducers that can perform real-time data analysis and diagnostics.

Conclusion

Rotary torque transducer strain gauges are indispensable tools in modern engineering and manufacturing. Their ability to provide accurate, real-time torque measurements makes them essential for ensuring the performance, safety, and efficiency of rotating machinery across various industries. Despite challenges such as signal noise and temperature effects, ongoing technological advancements continue to enhance their capabilities and applications. As industries strive for greater precision and optimization, the role of rotary torque transducers with strain gauges will undoubtedly become even more significant, driving innovation and excellence in engineering and manufacturing.
